Skelcore

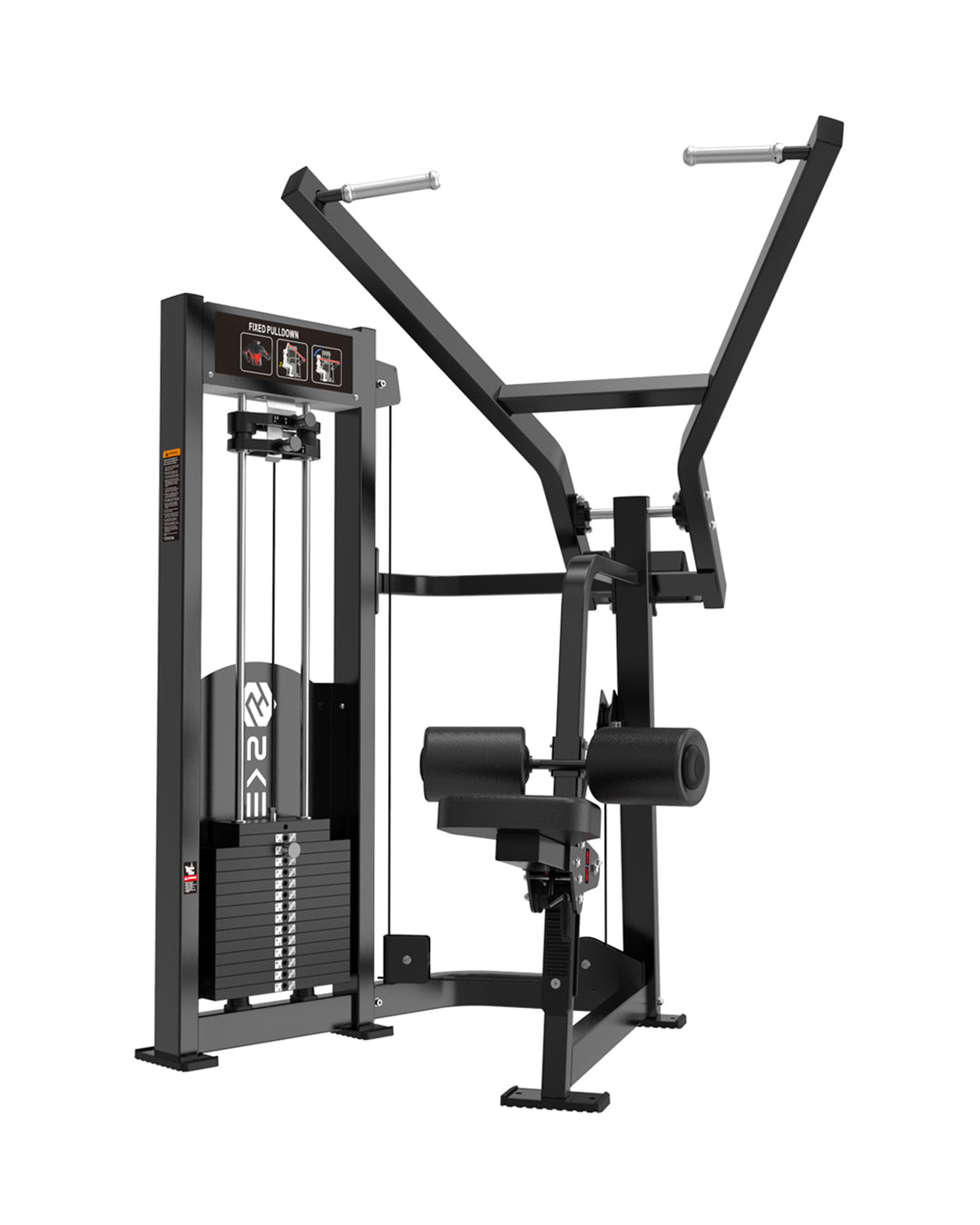

Power Series Fixed Pulldown Pin Load

SK-PWR-009

A commercial pin-loaded pulldown machine with a fixed movement path for lat and upper-back training. It pairs the feel of a classic pulldown with the control of a guided machine — built for consistency, safe overload, and busy floors.

Add to Quote Technical Specs

Manual Cut Sheet DWG

Specifications

Setup size (L x W x H)	56.152.5674.8 IN / 142513351900 MM
Max load weight
Max user weight	330 LB / 150 KG
Weight stack	117KG +4.6KG / 257LBS + 10.14LBS
Load weight
Steel frame
Padding
Machine weight	228KG / 502.65LBS
Console / screen
Motor / drive
Speed range
Mechanism	Pin-Loaded
Primary muscle group	Back

SMALL FOOTPRINT: 1425*1335*1900MM / 56.1*52.56*74.8INCHES
MULTIPLE ADJUSTMENT POINTS
HALF SHROUD FOR BETTER VISIBILITY THROUGH YOUR FACILITY.
BODY CONTOURING SEAT.
KNURLED STAINLESS STEEL HANDLES
WEIGHT STACK: 117KG +4.6KG / 257LBS + 10.14LBS
MACHINE WEIGHT: 228KG / 502.65LBS
MAX USER WEIGHT: 150KG / 330LBS
ALUMINIUM PULLEYS FOR SMOOTH MOVEMENTS
CABLE DRIVEN SYSTEM

Overview

The Power Series Fixed Pulldown Pin Load delivers a guided vertical pulling path that targets the lats and upper back without the setup demands of a cable station. The selectorized pin-loaded weight stack keeps resistance consistent rep to rep, while the body-contouring seat and multiple adjustment points position users correctly under load. Commercial-grade construction and smooth aluminium pulleys make it a dependable pulldown for high-traffic facilities.

Features & Benefits

Fixed movement path delivers a safe, repeatable pulldown for the lats and upper back
Quick pin adjustments on the selectorized stack keep load changes to seconds
Generous 117 kg (257 lb) weight stack with 4.6 kg increment; rated for users up to 150 kg (330 lb)
Body-contouring seat and multiple adjustment points suit a wide range of statures
Knurled stainless steel handles for a secure, slip-free grip
Half shroud keeps the stack accessible and floor sightlines clear

Exercises & Use Cases

Lat and upper-back hypertrophy programs
New members learning vertical pulling mechanics
High-volume back sessions with controlled overload
Circuit-based training on busy commercial floors

Care & Maintenance

Wipe the seat, thigh pads and handles down after sessions
Run a monthly inspection of cables, pulleys and guide rods
Keep the weight stack and guide rods clean and lightly lubricated
Contact Skelcore support for parts and professional servicing

Warranty & Support

Backed by Skelcore's commercial-grade support program — built for longevity in high-traffic facilities, with full access to professional setup guidance and after-sales service. Pricing is quote-based and excludes installation and tax.
